Home > Nylon tubes > PHL Nylon tube

Nylon tubes, Pneumatic tubing, Polyamide tube, air brake tube. - PHL Nylon tube

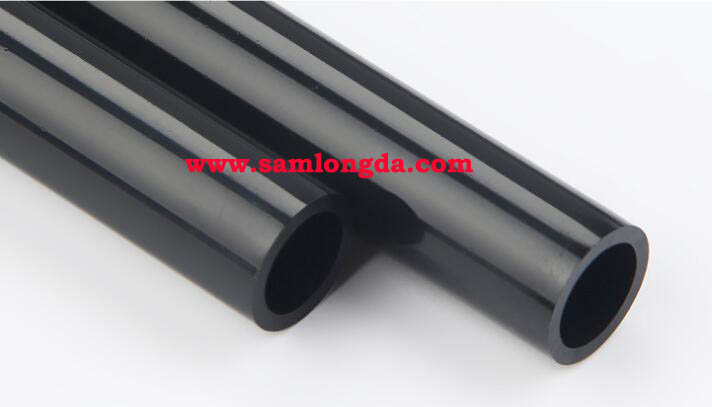

PHL Nylon 12 tube

PHL Nylon tube
*Brand New Polyamide tube.
*OEM specification on inch diameters.



Code Size(mm) W.P.(Mpa) B.P. (Mpa) Standard Length(m) Bend Radii (mm)
O.D I.D
P120302 3 2 2.5 2.8 100 18
P120425 4 2.5 2.7 4.2 100 20
P120402 4 2 3.2 6.0 100 30
P120503 5 3 2.3 4.8 100 35
P120604 6 4 3.1 6.2 100 40
P120806 8 6 2.5 4.5 100 50
P121008 10 8 2.6 4.8 100 65
P121075 10 7.5 2.5 4.5 100 65
P121209 12 9 2.5 4.5 100 70
P121612 16 12 1.8 3.6 100 80



Products Keywords:
Nylon tube, PA Schlauch,
