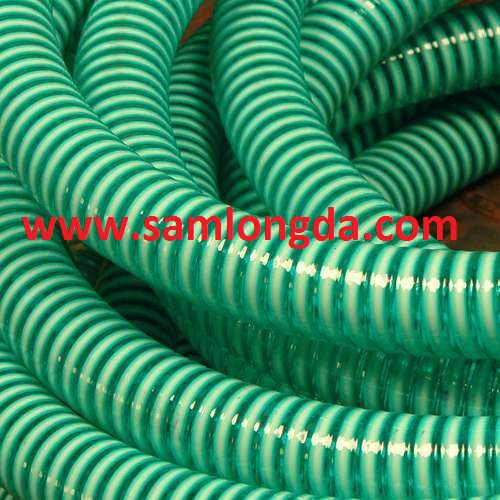

suction hose

1. Material: New PVC and rigid PVc helix
2.Temperature: -10ºC to +65ºC( 14ºF to 150ºF)
3. Various Colors: Green, Yellow, Red, Black, Orange, Transparent Blue,

Samlongda PVC suction hose are made by PVC smooth bore which allows full flow.

The extreme clarity of series makes it most suitable for applications where visibility of flow is an important requirement. Designed for both suction and delivery.

Application: General purpose suction and delivery of fluids, suitable for submersible pumps, boat pumps, construction and mining, irrigation lines, rock dust hose, wellpoint systems, agri-foam application, agriculture applications and liquid fertilizer transfer.

PVC Suction Hose (smooth surface)
Hose Size(+/-0.5mm)			Thickness	M/roll	W.P.	Weight
Inch	ID   mm	OD  mm	MM		bar	KG/M
3/4"	20	26.00	3.00	30	9	0.29
1"	25	31.00	3.00	30	8	0.36
1-1/4"	32	38.00	3.00	30	8	0.45
1-1/2"	38	44.00	3.00	30	8	0.52
2"	51	58.00	3.50	30	7	0.81
2-1/2"	64	71.00	3.50	30	6	1.01
3"	75	83.00	4.00	30	5	1.36
3"	76	85.00	4.50	30	5	1.55
4"	102	112.00	5.00	30	5	2.25
5"	125	137.00	6.00	30	4	3.20
6"	152	167.00	7.50	30	4	4.30
8"	200	216.00	8.00	8	3	6.40
