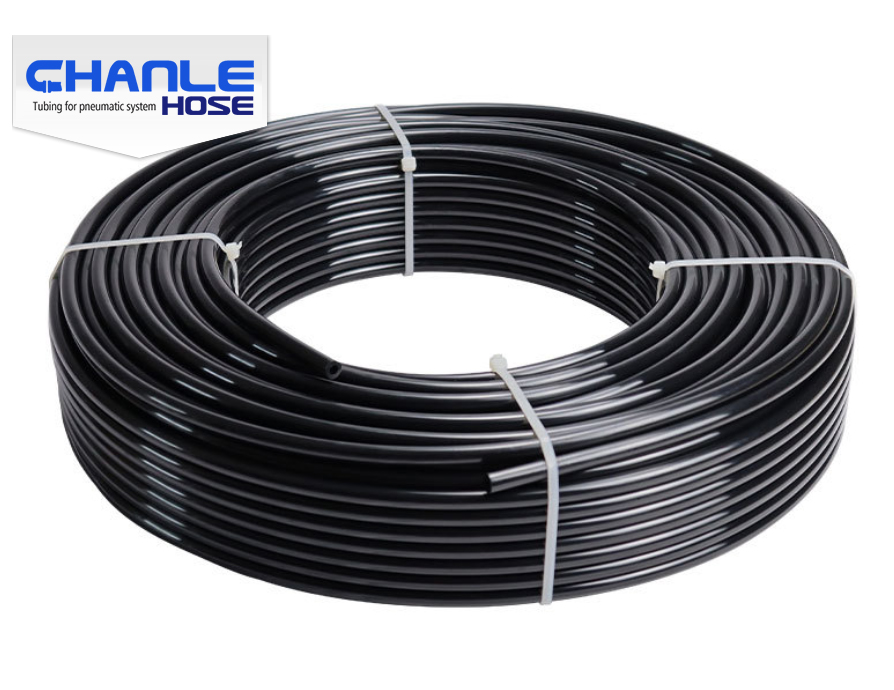

Air Brake Hose

Air Brake Hose
*High pressure polyamide tube with 15 bar to 30bar working pressure.
* Type B braid structure available for OEM serivce too.
*Nylon tubing resistant tosolvents,alkalis,oils,greases,petroleum products,fungi moulds.
 1.High quality guaranteed: we have very strict quality control system to make sure every Nylon tube production process under well conditions.
2. High pressure polyamide tube with 15 bar to 30bar working pressure.
3. Fast delivery: 3~20days lead time as an actual and professional manufacturer,we have the confidence to arrange your order at the shortest time!




Code Size(mm) W.P.(Mpa) B.P. (Mpa) Standard Length(m) Bend Radii (mm)
O.D I.D
P120302 3 2 2.5 2.8 100 18
P120425 4 2.5 2.7 4.2 100 20
P120402 4 2 3.2 6.0 100 30
P120503 5 3 2.3 4.8 100 35
P120604 6 4 3.1 6.2 100 40
P120806 8 6 2.5 4.5 100 50
P121008 10 8 2.6 4.8 100 65
P121075 10 7.5 2.5 4.5 100 65
P121209 12 9 2.5 4.5 100 70
P121612 16 12 1.8 3.6 100 80
